Aluminium: Playtower combination wood/aluminium

Back: Aluminium

Play tower combination Playtower combination wood/aluminium

Aluminium

Playtower combination wood/aluminium

Article 37530

CHF 14'605.–

(excl. VAT)

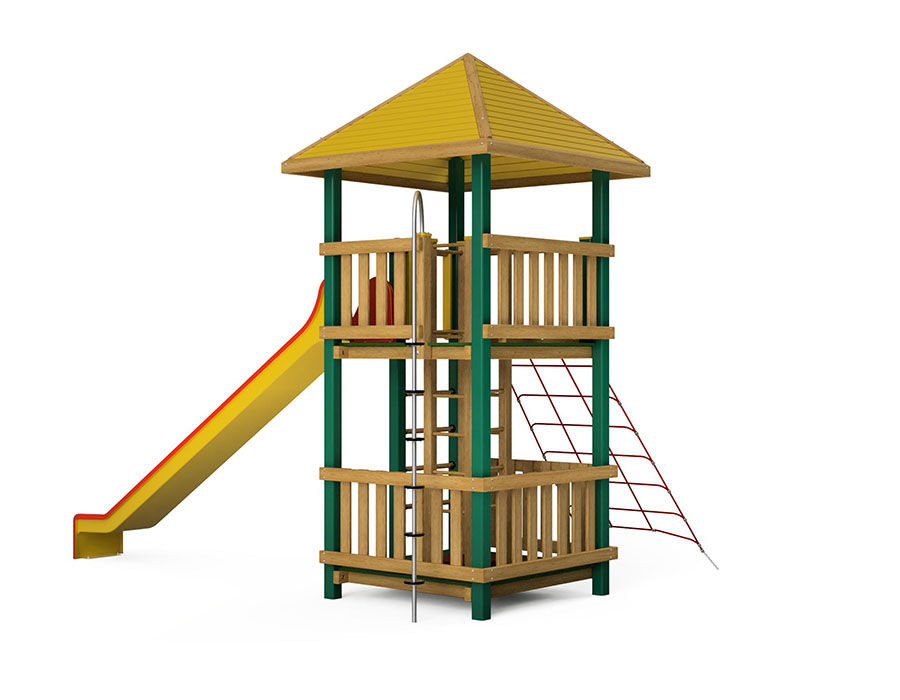

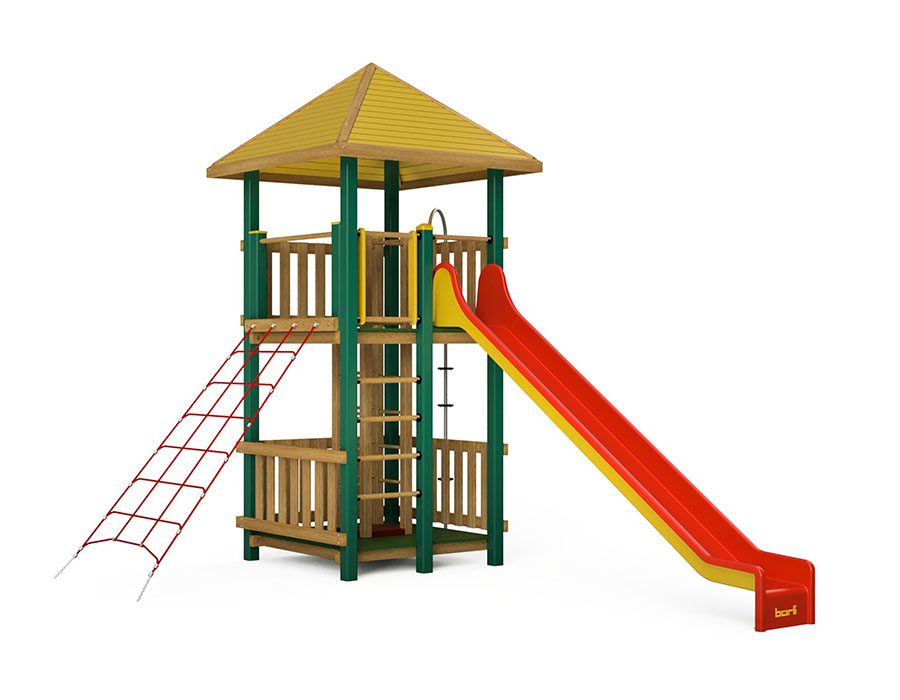

Wood/aluminium playtower combination made of multi-glued Swiss pine, pressure impregnated, pyramid roof with aluminium panelling, posts made of stove enamelled aluminium in RAL 6016 turquoise green, platform heights 25/200 cm, slide made of polyester red/yellow, climbing pole, climbing net ascent, minimum installation depth 50 cm.

Age group	3+
Equipment line	Aluminium

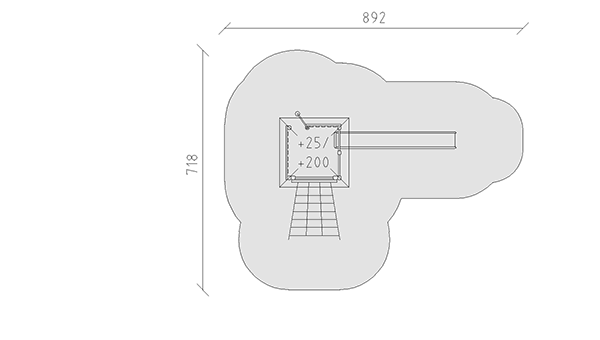

Space required	892 x 718 cm
Fall height	200 cm

Questions about this product?

	Device dimensions	528 x 384 x 439 cm
	min. impact surface	43.7 m²

	Device dimensions	528 x 384 x 439 cm
	Fall protection up to 100 cm	12.00 m²
	Fall protection up to 210 cm	38.00 m²

Delivery scope
The playtower is delivered completely assembled. The add-on elements must be attached on site.

	Age group	3+
	Device dimensions	528 x 384 x 439 cm
	Space required	892 x 718 cm
	min. impact surface	43.7 m²
	Fall height	200 cm

	Heaviest element	390 kg
	Foundations	9
	Concrete	1.25 m³
	Assembly time	3 h
	Installers	2
	Biggest element	210 x 210 x 480 cm

	Fact sheet
	Foundation (natural fall protection)
	Foundation (synthetic fall protection)
	Assembly instruction
	2D-DWG data
