Steel: Cable slide with launch pad 20 m

Back: Steel

Cable slide Climbing frame

Steel

Cable slide with launch pad 20 m

Article 62911

CHF 7'520.–

(excl. VAT)

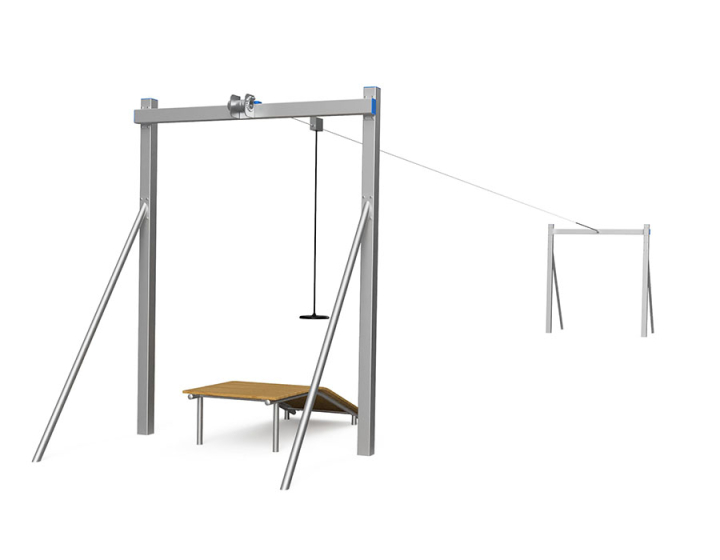

Cable slide made of hot-dip galvanised steel tube, length 20 m, version for flat terrain with launch pad. Launch pad made of multi-glued, pressure-impregnated Swiss pine with platform height 60 cm, minimum installation depth 80 cm.

Age group	3+
Equipment line	Steel

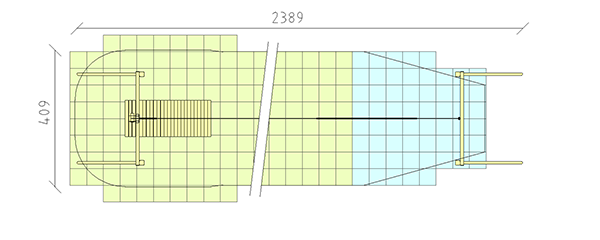

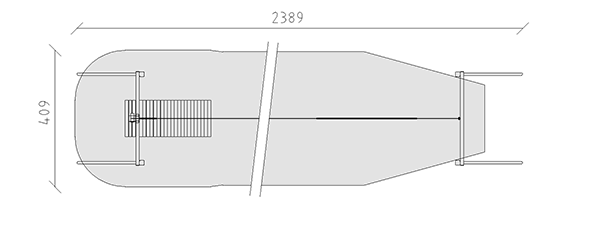

Space required	2389 x 409 cm
Fall height	140 cm

Available:

15 m 20 m 25 m

Questions about this product?

	Device dimensions	2389 x 281 x 370 cm
	min. impact surface	87.05 m²

	Device dimensions	2389 x 281 x 370 cm
	Fall protection up to 100 cm	80.00 m²
	Fall protection up to 180 cm	14.50 m²

	Age group	3+
	Device dimensions	2389 x 281 x 370 cm
	Space required	2389 x 409 cm
	min. impact surface	87.05 m²
	Fall height	140 cm

	Heaviest element	105 kg
	Foundations	12
	Concrete	4.9 m³
	Assembly time	8 h
	Installers	2
	Biggest element	450 x 14 x 14 cm

	Fact sheet
	2D-DWG data

Accessories

Article

Lawn grid fall prote...

CHF 69.-

Article

Solid rubber tile FL...

CHF 82.-
